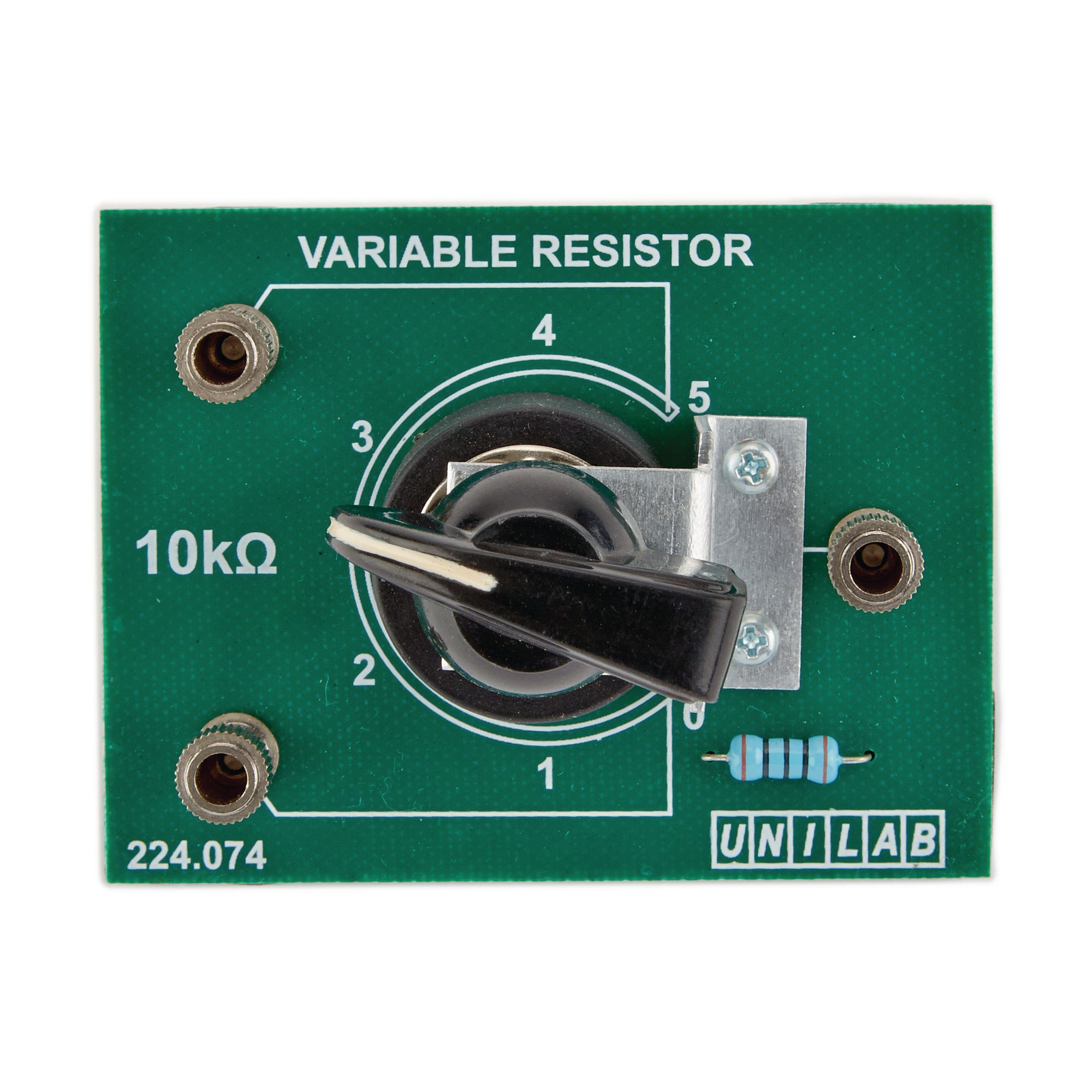

UNILAB Simple Circuit Module – Mounted Variable Resistor

Simple Circuit Modules.

These modules may be used to construct simple circuits of the type normally implemented on, for example, a Worcester Circuit Board. They are intended to introduce younger pupils (ages 11-13) to some of the more familiar applications of devices and circuits, the main emphasis being on simple electrical circuit work.

The module is 90mm x 65mm and has 4mm plug connections.

• This module is a 10kO linear potentiometer.
