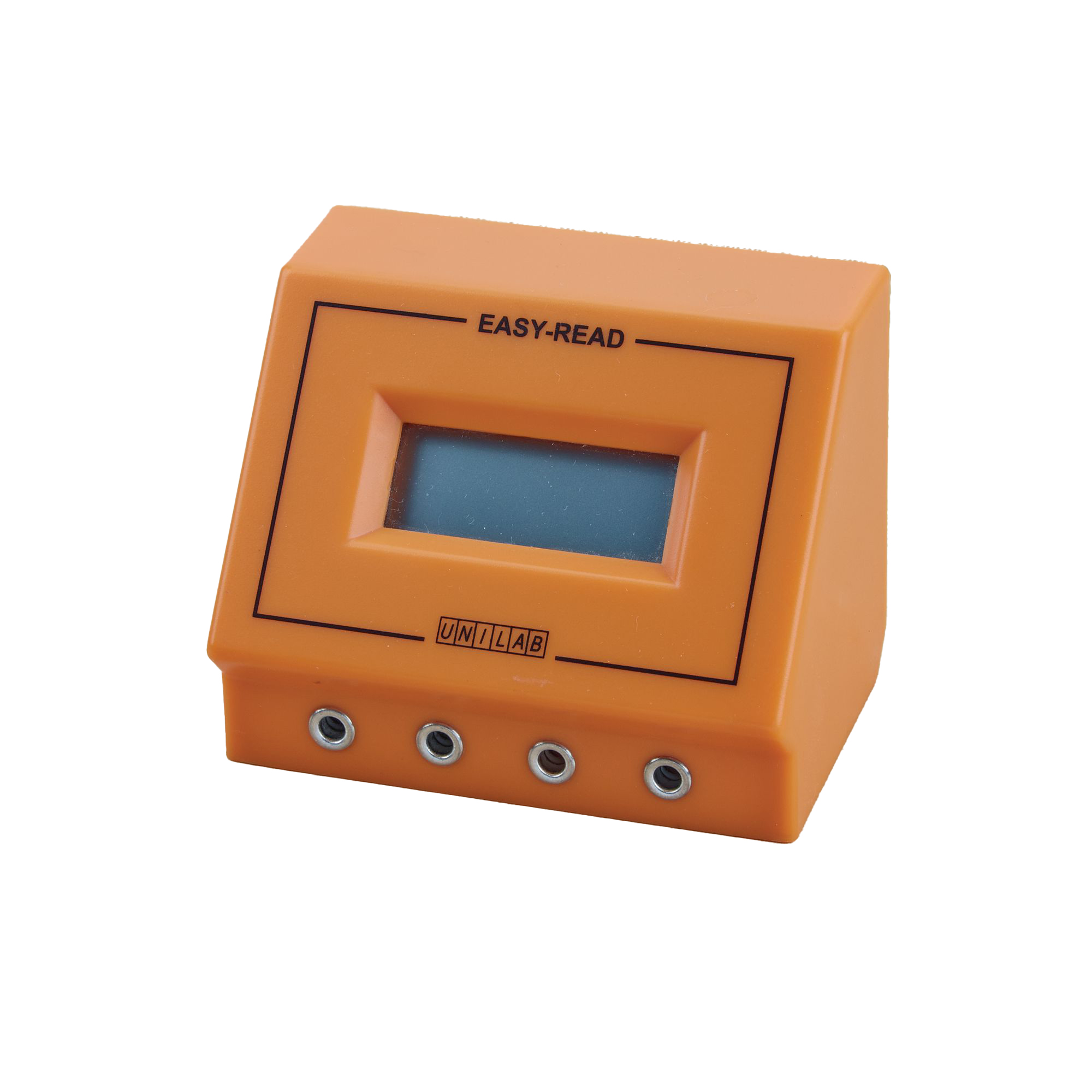

UNILAB Easy-Read Digital Meter

The Easy-Read Digital Meter by Unilab can be combined with the Easy-Read Attachments to create an Ammeter, Milliammeter, Voltmeter or Millivoltmeter. Excellent for general circuit work.

Use the meter to measure the current through the Helmholtz Coils. The attachments are colour-coded and their sockets are arranged to help students grasp the concepts of shunts and multipliers.

• Input impedance: 100kΩ
• Resolution: 0.01
• Accuracy: ±2%
• Mass: 0.25kg
• Dimensions: 95mm x 90mm x 55mm

Shunts available to purchase separately include:

• B8H30919 – 20V d.c.
• B8R02651 – 20mA d.c.
• B8H30671 – 20V a.c.
• B8H30737 – 10A d.c.
• B8H31067 – 1A/10A a.c.

Supplied with a PP3 battery that gives a useful life of over 1000 hours, the Easy-Read displays ‘LO BAT’ when the battery needs to be replaced.
