UNILAB Coulombmeter

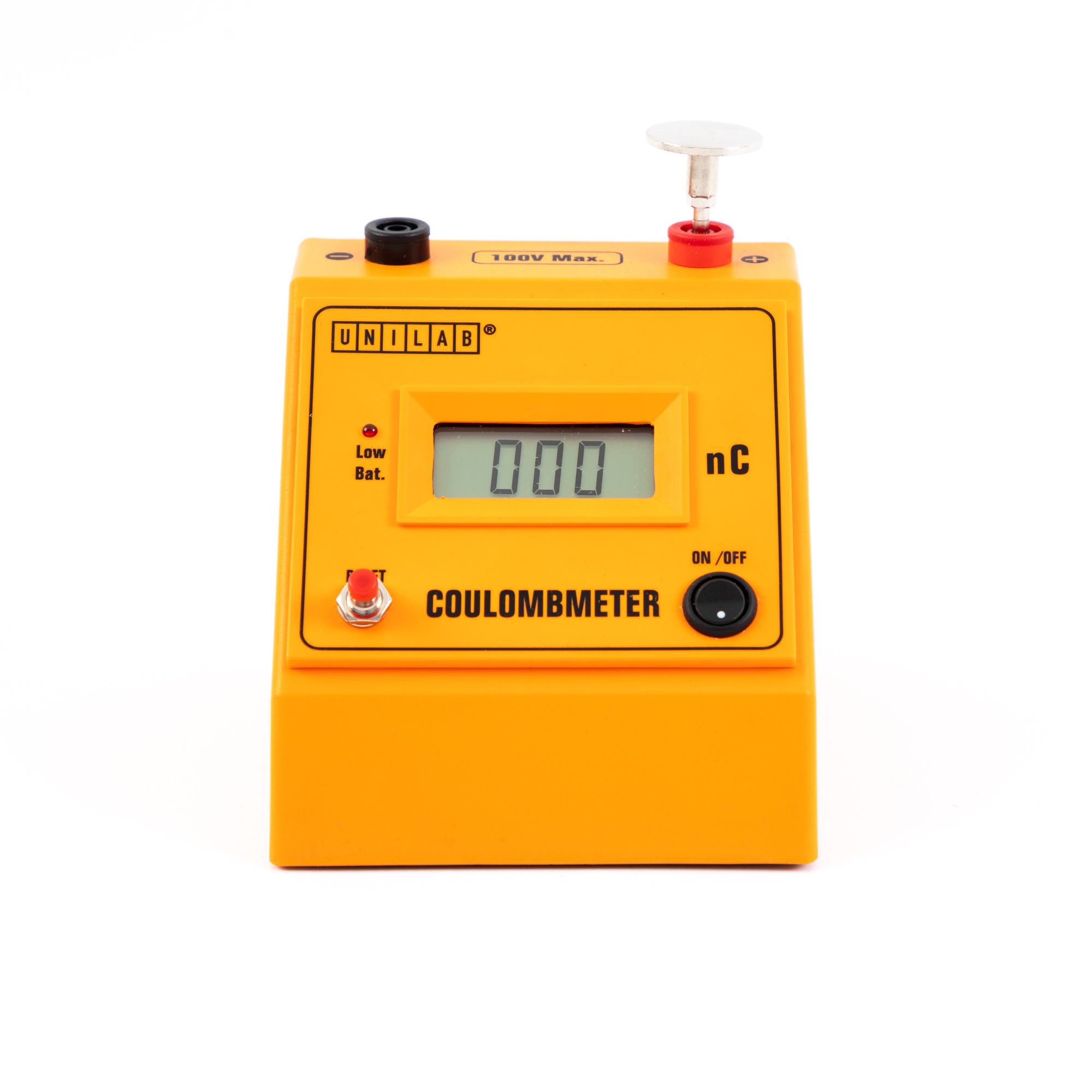

This Digital Coulombmeter unit by Unilab is a quantitative alternative to the gold-leaf electroscope with internal capacitance 1µF, and max. p.d. between terminals of 100V. It can be charged by contact or by induction by bringing a charged body up to the 25mm collecting plate. The 3½ digit display shows charge in the range of -1999 to +1999nC. A reset button discharges the unit as required. Two 4mm terminals on the top are used for connection to ground and to the charging body.

Digital Coulombmeter

• Range: 0-1999nC
• Accuracy: ±10% of F.S.D.
• Overload Capability: 100V
• Internal Capacitance: 1µF
• Maximum Potential Difference: 100V
• Dimensions: Width:11cm Length:12cm Height:11cm

The unit is powered by an internal PP3 battery which is not included but is available to purchase separately (B8R05410).

Associated Products:

• Electrostatic Rods: B8A47969, B8H26631, B8L01491
• EHT Power Supply: B8R02653
