Spectrum Tube – Xenon
£26,27
Spectrum Tube – Xenon
Description
Spectrum Tube – Xenon

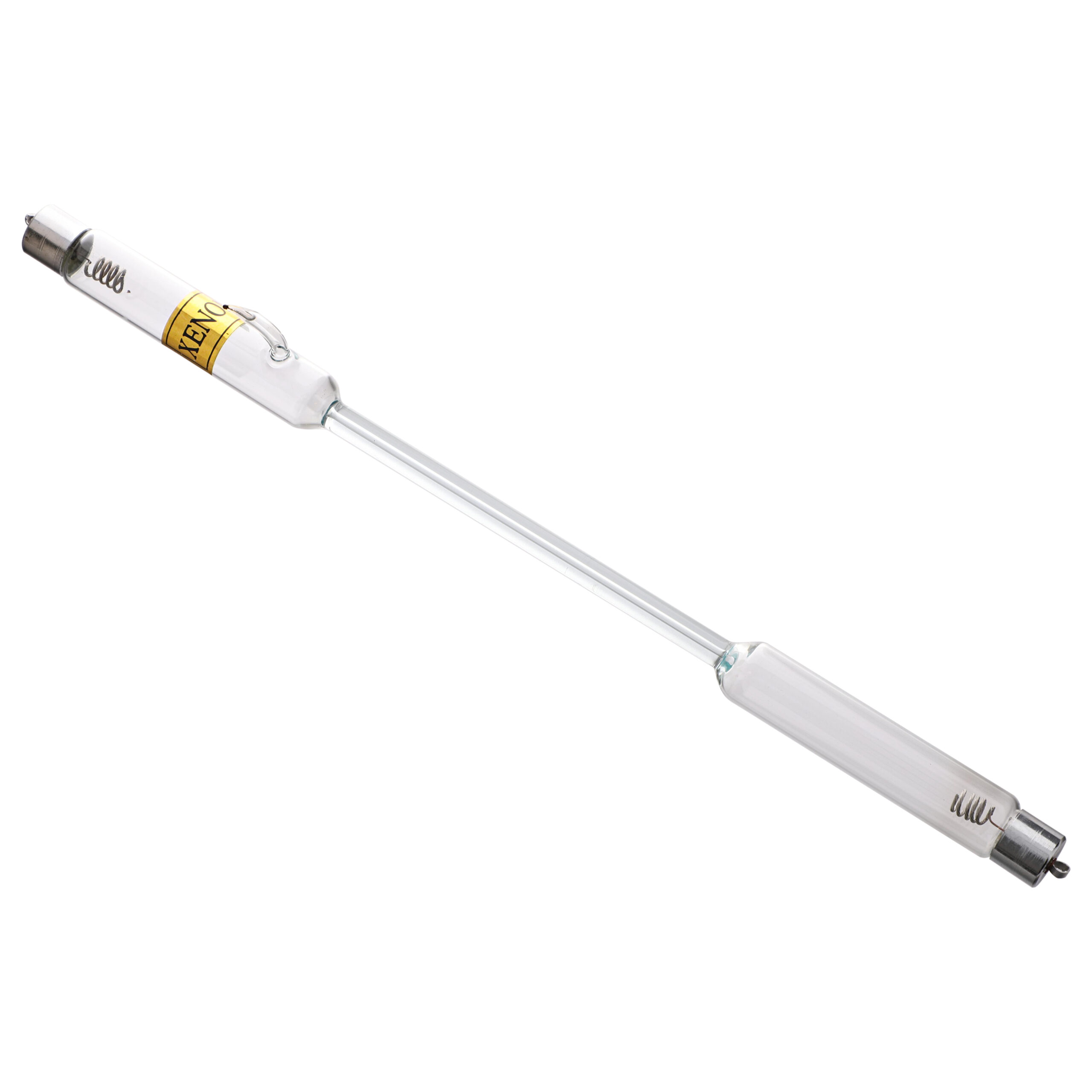

Xenon gas-filled discharge tube for studying typical spectra of the different gases and for use in calibrating spectrometers. The glass body is provided with metal end caps and is constricted along the middle portion to concentrate the discharge glow.
- Tube Length: 260mm
- Strike Voltage: 2000V – 5000V
- Maximum Recommended Running Current: 3mA
- Recommended Run Cycle: 30 seconds on, 30 seconds off
Requires the following equipment to operate:
- Spectrum Tube Holder – B8R08098
- E.H.T. Power Supply – B8R02653
- E.H.T. Safety Experiment Leads – B8R07149
Alternative individual tubes are available to purchase separately:
- Argon – B8R06989
- Helium – B8R06986
- Hydrogen – B8A46539
- Krypton – B8R06991
- Mercury Vapour – B8R06990
- Neon – B8A46565
- Nitrogen – B8A46541
- Oxygen – B8A46553
Additional information
| Weight | 108 g |
|---|---|
| Dimensions | 310 × 70 × 65 mm |
