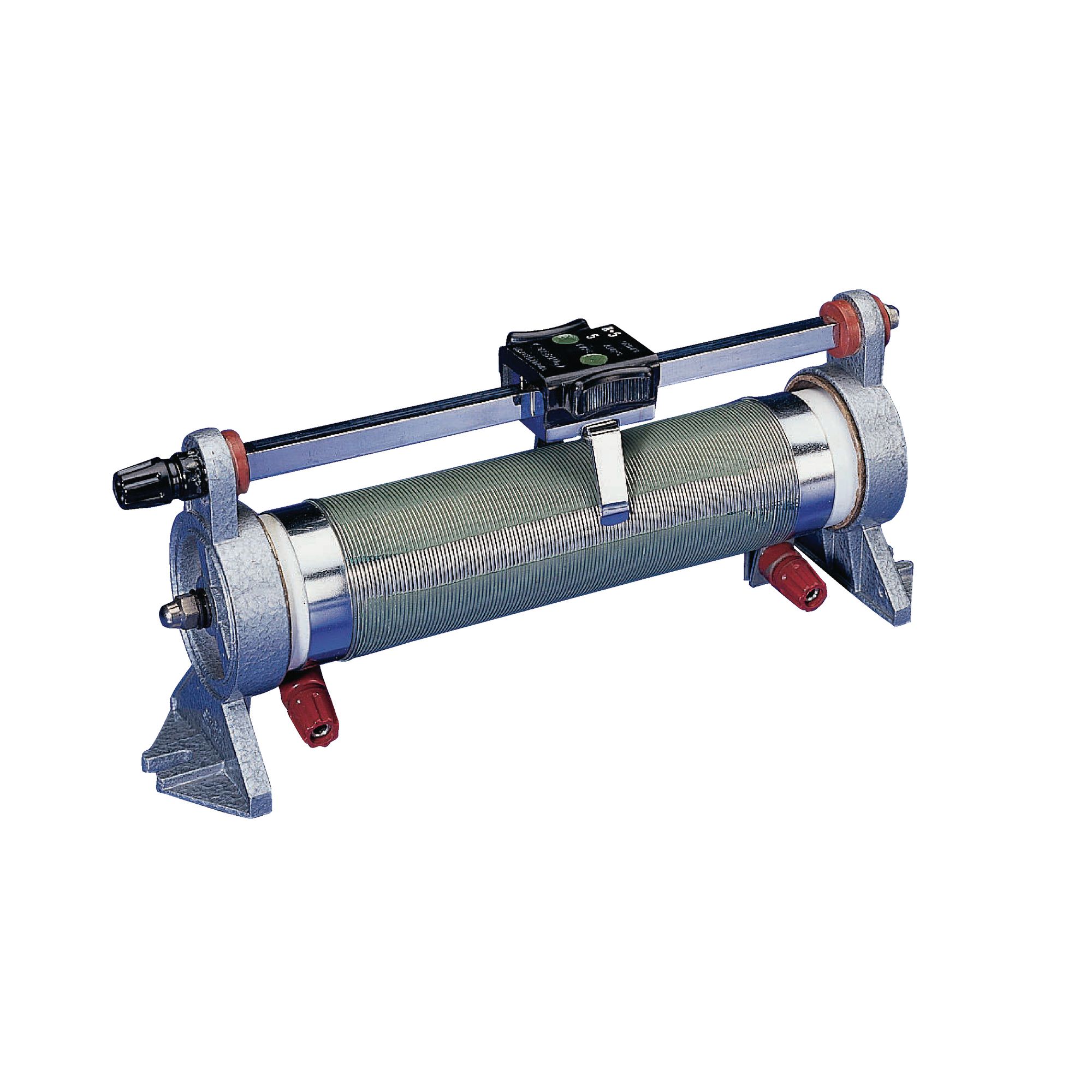

Rheostat: Standard Range – 2.3A, 55 Ohm

We supply a comprehensive range of rheostats offering excellent value for money. They are wound with heavily oxidised resistance wire on a vitreous enamelled tube with the winding secured in place with a ceramic cement. The tube is supported on robust diecast end stands and the heavy duty sliding contact is of the multi-leaf phosphor bronze type, nickel-plated for corrosion resistance. 4mm terminal posts are fitted, facilitating external connection by conventional 4mm plug leads, spade terminals or bare-ended leads.

Rheostat, Standard Range – 2.3A

Features:

• Resistance: 55Ω
• Max Current: 2.3A
• Tube Size: 200mm x 43mm
• Overall Size: 255mm x 100mm x 65mm
