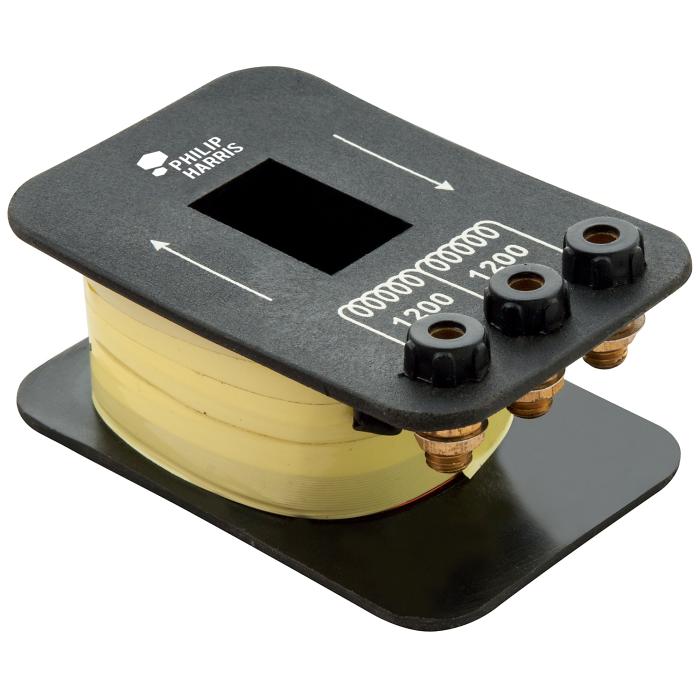

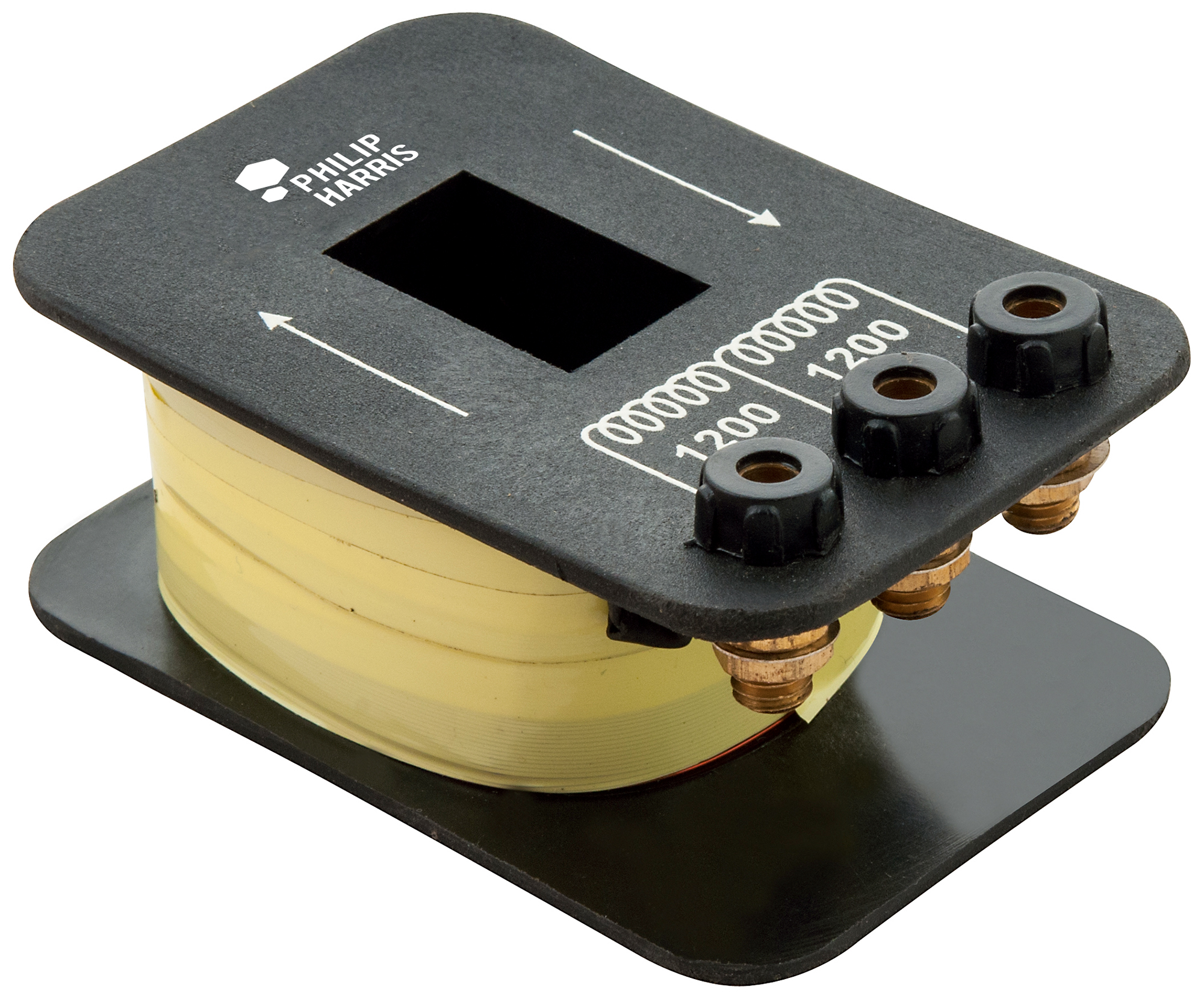

Philip Harris Transformer Coils – 1200 + 1200 Turns

Silicon steel C-core and clip with a range of coils for use as inductors and transformers. The approximate inductance values, with and without a complete C-core, are shown in the table below. Current ratings are based on 150A per square cm. The coils will run hot, but will not be damaged by short-term currents of up to twice the stated value.

• No. of Turns: 1200 + 1200
• Air-core: 145mH
• Wire: 0.315mm
• Max Current: 0.12A

Alternative Transformer Coils are also available to purchase separately:

• B8H26448 – 5000 + 250 Turns
• B8H26459 – 500 + 125 Turns
• B8H26436 – 60 + 60 Turns
• B8H26473 – 120 + 120 Turns
