Philip Harris Polarimeter

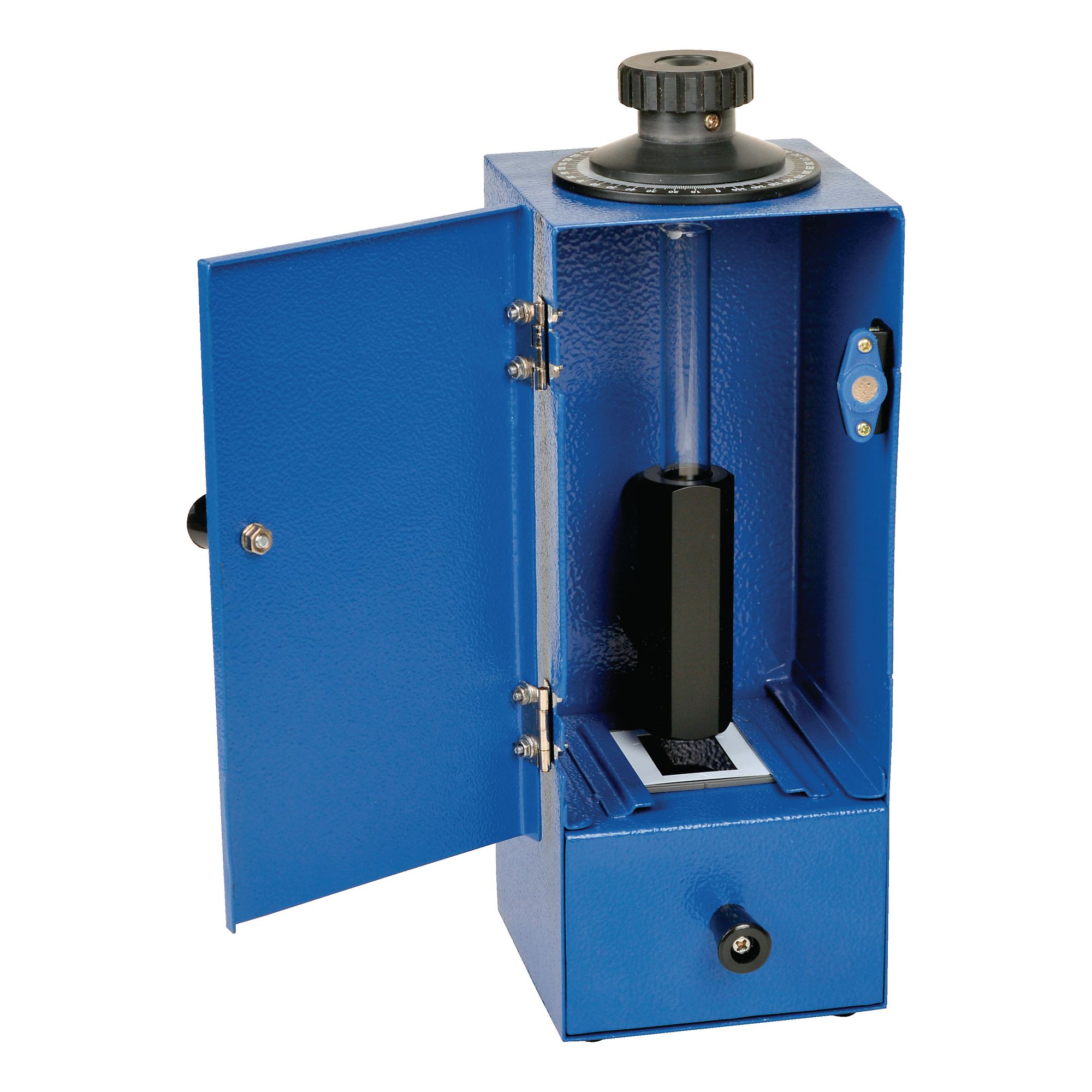

For measuring the degree of rotation of plane-polarised light by solutions of optically active substances. Mounted in a steel box with a 6V bulb in the base. Light from this source passes through a polarising filter then through a yellow filter to the sample tube. The interior of the tube support is finished in matt black to reduce internal reflections and is held in position by a pair of 4 mm plugs and sockets. The rotatable analyser is mounted in the top panel with a fixed 0-360 degree scale for measuring the rotation of the polarised light. The steel body has a hinged door for access to the sample tube and the illuminator unit slides out for bulb changing.

• Illumination: 6V, 0.3A tungsten
• Sample Tube: (L)150mm x (D)15mm
• Analyser scale – 0-360 degree – extinction at 0 degree / 360 degree and 180 degree
• Dimensions: (H)270mm x (W)100mm x (D)100 mm
• Supplied with polarisers, yellow filter sample tube and instructions

Spare Polarimeter Tubes (B8R08164) are available to purchase separately.
