Philip Harris Interscale Demonstration Meter

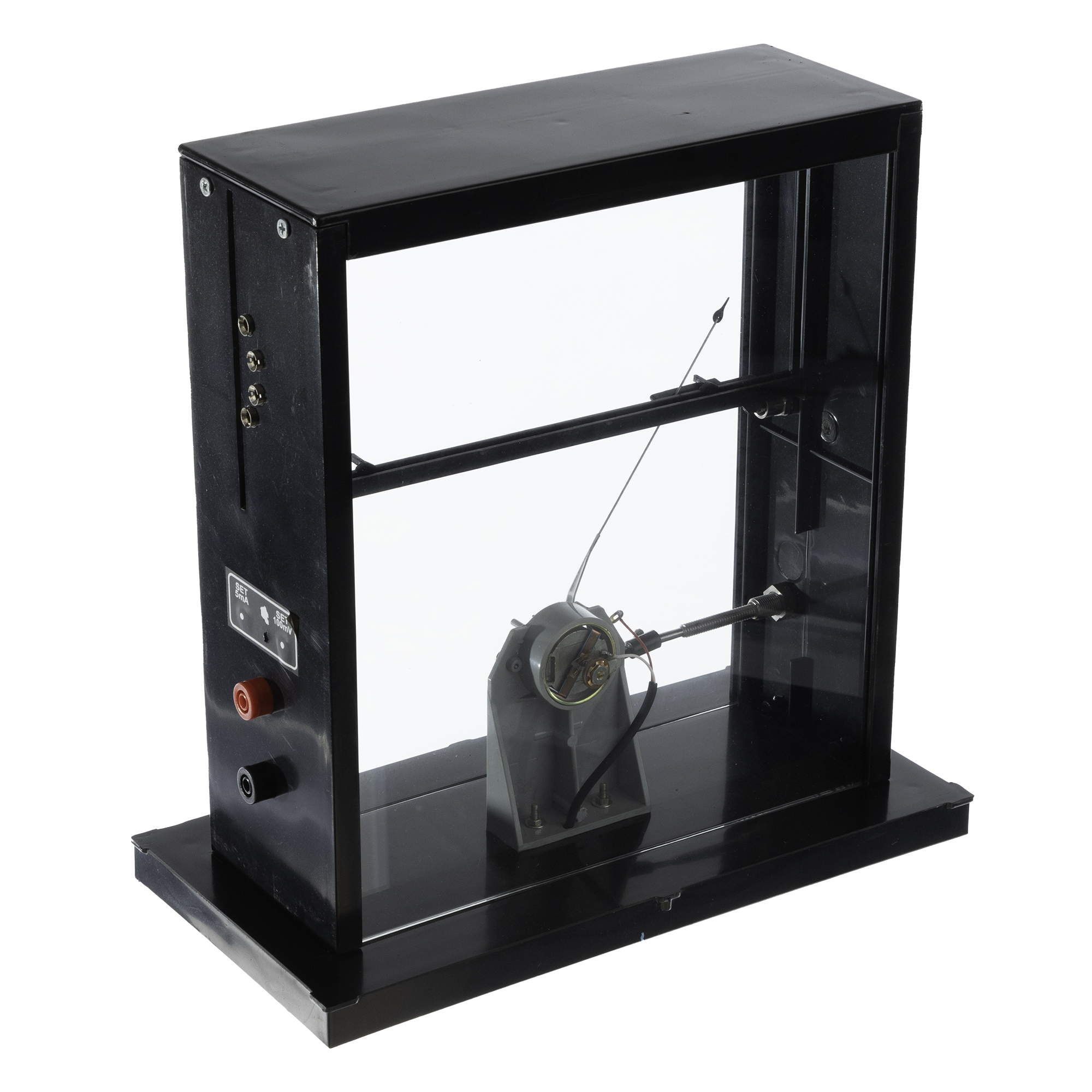

A versatile demonstration meter that can be converted from a Voltmeter to an Ammeter on either A.C. or D.C. by the use of interchangeable dials (sold separately: see below). Each dial fits through a slot in the side of the case and connects through four fixed 4mm sockets. The meter operates using a moving coil galvanometer housed within a plastic case allowing all working/moving parts to be observed through either side of the meter. Scales are marked on both sides making this unit ideal for class demonstration.

• Versatile meter that can show A.C. or D.C.
• Highly sensitive moving coil galvanometer with accuracy of ± 2.5%
• Scale on both sides of the dial for class demonstration
• Easy observation of working parts
• Basic sensitivity of meter is 5 mA, 100 mV f.s.d
• Dimensions: (W)300mm x (H)300mm x (D)150mm

Dials are not included.  A range of dials for the Interscale Demonstration Meter are available to purchase separately:

• 0 – 10mA d.c. – B8L15970
• 0 – 1A d.c. – B8L15994
• 0 – 10A d.c. – B8L16007
• 0 – 1V d.c. – B8L16019
• 5 – 0 – 5V d.c. – B8L16032
• 0 – 15V d.c. – B8L16020
• 0 – 10A a.c. – B8R06811
• 0 – 15V a.c. – B8L16079
• 0 – 300V a.c. – B8L16081
