Philip Harris Demonstration Dynamo
£63,44
Philip Harris Demonstration Dynamo
Product Code:
E8L26098
Category: Magnetism
Description

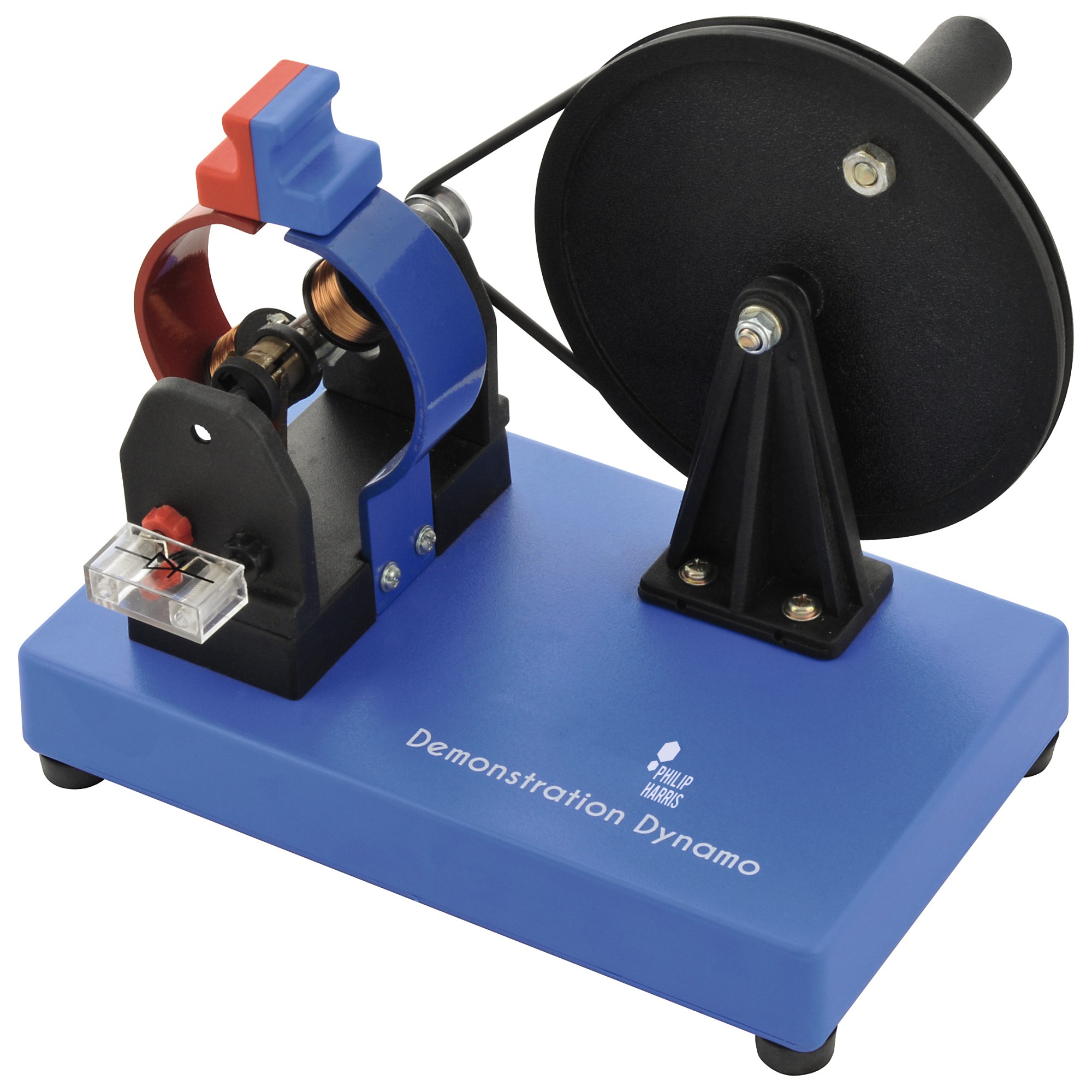

The Demonstration Dynamo includes 2-pole armature wound with enamelled copper wire, and a permanent magnetic field provided by a removable magnet. The construction of the model is completely open and all components are readily observable. This model is mounted on a 200 x 125mm baseplate, which also carries a hand-drive pulley, 125 diameter, coupled to the smaller dynamo pulley by a rubber belt. Electrical output is via a pair of 4mm sockets, and a light emitting diode is provided as simple output indicator.
The model may also be used as a motor on a 6 to 9V d.c. supply.
- Overall height: 180mm.
Additional information
Weight | 870 g |
---|---|
Dimensions | 203 × 182 × 170 mm |
